The M54 Filter Drawer with 20mm ring design is independently developed by ZWO and specifically made to match with the full-frame cooled camera ZWO ASI6200 and ASI2400.
The double strong magnets create stronger adsorption, easier installation and pulling out.
The M48*0.75 female thread can be used with the 2inch filters.
The M54*0.75 female thread can be used to connect with the telescope.
And the M54*0.75 male thread can be used to connect with the ASI6200 camera.
With the ability of double strong magnetic adsorption, it is more convenient and much easier to install or pull out the filter.
There is a lock screw on the side of the M54 filter Drawer. The locking function is helpful on adjusting the tension to eliminate the gap, which is a double insurance for users.

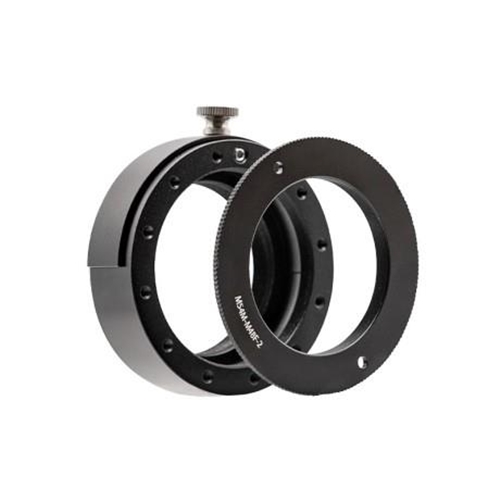

There also is a M54-M48-2 adapter coming with the M54 Filter Drawer so that you can use it with your camera or your telescope.
70mm(height)*70mm(length)*20mm(thickness)
M54*0.75 male(external) thread (camera side)
M48*0.75 female(internal) thread (filter end)
M54*0.75 female(internal) thread (telescope side)
Suitable for 2-inch astronomical filters
