رابط New T2 Tilter




توضیحات محصول:
 چرخ گردان جدید T2 چندین سوراخ پیچ اضافه می کند تا به ZWO EFW (سازگار با چرخ فیلتر 2 اینچی EFW) کمک کند.



Product Description

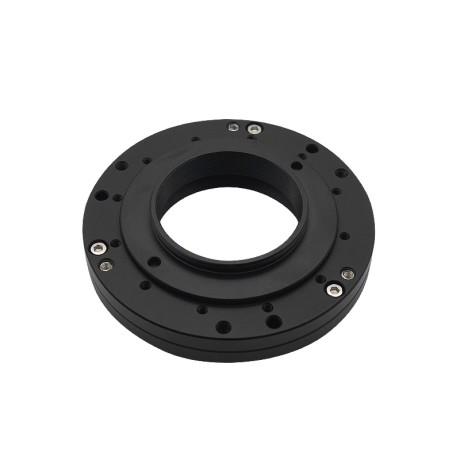

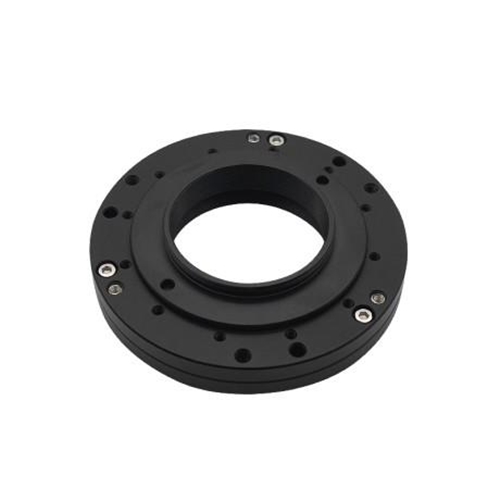

The New T2 tilter adds multiple screw holes to help connect to ZWO EFW (compatible to 2” EFW filter wheel).

New ZWO T2 tilter-1

Package and size

Main body:Diameter 78mm,11mm without the T2-T2 adapter

T2-T2 adapter:Thickness 2mm

Interface: T2 (M42*0.75 thread) each side



Product usage

  1. Mainly used to reduce newton ring when imaging ha-solar;
  2. Also used to adjust the camera imaging plane by rotating the six bolts in the main camera body when the sensor plane is uneven.

New ZWO T2 tilter-2

Applicable cameras

All ASI cameras except ASI071, ASI2600 and ASI6200.



Connection method

1. Cooled camera: ASI294/ASI1600/ASI183/ASI533

New ZWO T2 tilter-3New ZWO T2 tilter-4

2. Non-cooled camera:

ASI294/ASI1600/ASI183/ASI174

These cameras do not need to connect to the T2-T2 adapter

New ZWO T2 tilter-5

ASI178/ASI290/ASI224/ASI120

These cameras need to connect to the T2-T2 adapter first.

ASI178 T2-Tilter-1ASI178 T2-Tilter-2

Mechanical drawing

New ZWO T2 tilter-7

What’s in the box?

New ZWO T2 tilter-8

T2 tilter *1
