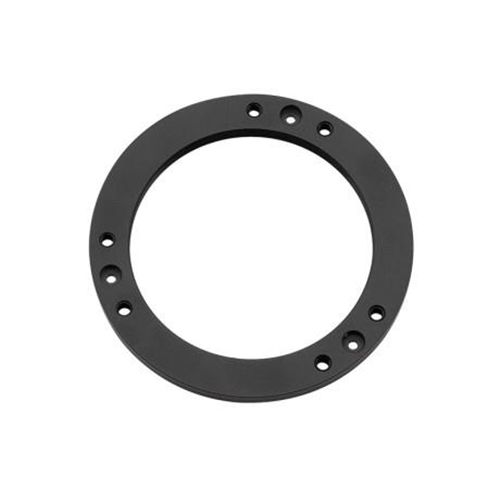

M68 Sensor Tilt Plate
M68 Sensor Tilt Plate
دوربین های ستاره شناسی و تججهیزات جانبی شرکت ZWO


توضیحات محصول:
 صفحه تیلت سنسور M68 (5 میلی متر) به طور مستقل توسط ZWO توسعه یافته است و به طور ویژه برای مطابقت با دوربین خنک کنندهدار فول فریم ZWO ASI6200MM/MC Pro ساخته شده است. توصیه می شود از آن با ZWO 2inch EFW و ZWO M68 OAG استفاده کنید و آنها را در سمت تلسکوپ M68-thread نصب کنید.






Product Description



M68 sensor tilt plate (5mm) is independently developed by ZWO and specially made to match with the full-frame cooled camera ZWO ASI6200MM/MC Pro.

You are encouraged to use it with ZWO 2inch EFW and ZWO M68 OAG and mount them on the M68-thread telescope side.

M68 Sensor Tilt Adapter-1M68 Sensor Tilt Adapter-2

The original M54 sensor tilt plate of ASI6200 can only be used to connect with the M42/M48 thread telescope side for now.

While this new M68 sensor tilter plate can be used to connect with the M68 thread telescope side.

M68 Sensor Tilt Adapter-3

The best solution of 55mm back focus length

6200-55mm-backfocus-solution-5 (2)

Click here to get the detailed connection guide:

5 connection methods of ASI6200 to get 55mm back focus length:

https://astronomy-imaging-camera.com/tutorials/5-connection-methods-to-get-55mm-back-focus-length.html



Mechanical drawing

M68-Tilter
