Product Description

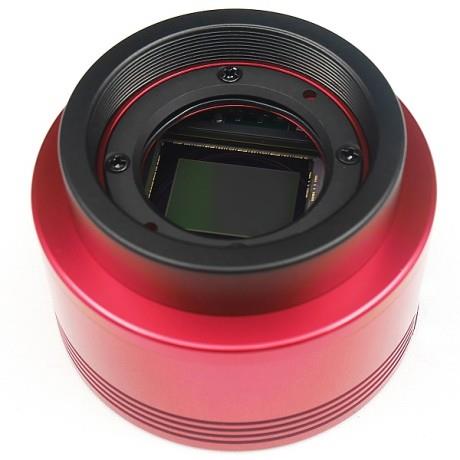

ASI294MC

294mc



ASI294 is the first camera in the world that equiped with SONY latest sensor IMX294CJK.

294MC6

Diagonal 21.63 mm (Type 4/3) Approx. 10.71M-Effective Pixel Color CMOS Image Sensor, This is the official description on Sony website. In our effort, we remolded it to make it Diagonal 23.2 mm (Type 4/3) Approx. 11.71M-Effective Pixel.

i_imx294

▶High-Sensitivity Type 4/3 CMOS Image Sensor that Supports 4K for Astronomic Cameras and Industrial Applications

The “IMX294CJK” is the first in-house image sensor for astronomic cameras to adopt the Type 4/3 format, and realizes output of the number of pixels needed for 4K at 120 frame/s (in ADC 10-bit output mode, ASI294MC can run up to 25fps at 4k format base on USB3.0 bandwidth). In addition, use of a large-size pixel achieves SNR1s of 0.14 lx* which is very close to the value of ASI224(0.13 lx*).

▶Exceptional low-illumination performance

Exceptional low-illumination performance of SNR1s: 0.14 lx is realized by use of a large-size optical system and by expanding the area per pixel to 4.63 µm. This makes the IMX294CJK ideal sensor for astronomic camera market applications which requires low-illumination performance.

14bit ADC & 13 stops DR

ASI294 have 14bit ADC and it can achieve 13 stops dynamic range which is even better than ASI1600.

HCG Mode

HCG mode will be on when gain is higher than 120(12db), read noise will drop below 2e but same dynamic range(13 stops).

294 Gain RN DR FW vs gain

Full well Capacity

63700e full well, which is 3 times than ASI1600’s capacity. Even bright stars won’t saturate under long exposure.

This camera can achieve higher SNR(signal to noise ratio) with just one single exposure.

High QE

IMX294 sensor is a BSI(back-illuminated type) sensor and has very high QE(we suppose the QE peak is more than 75%).

294QE



USB 3.0 Port & ST4 Port

294MC1

USB 3.0 Port: Provide 5Gb bandwidth to make it possible for  ASI294MC to run at 16 fps (14bit, normal mode) or 19 fps (12bit, high speed mode)  at full resolution(11.7Mega).

ST4 Port: Can be used connect with auto guide port of mount, for guiding.



Mechanical Drawing

What is in the box?

ASI294MC box includes all necessary cables, adapters, and manuals.

1600 183 294非冷冻包装清单-1024x768

Drivers and Softwares:

Our website has newest camera drivers and many DSO and Planetary capture softwares. Please make sure the newest driver and software has been installed before you start shooting:

https://astronomy-imaging-camera.com/software/
