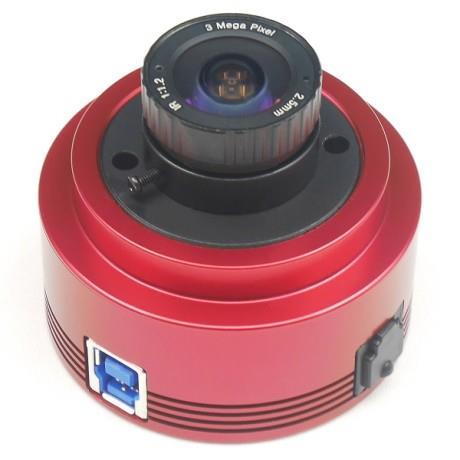

دوربین تصویر برداری سیارات ، ماه و خورشید (رنگی ) ASI385MC (color)


Product Description

385MC

Logo-of-385(最新)2-e1510124117631

Camera Sensor

Diagonal 8.35 mm (Type 1/2) Approx. 2.13M-Effective Pixel Color CMOS Image Sensor.

i_imx385

CMOS Image Sensor for Industrial Applications that Realizes High Sensitivity Approximately Twice That of the Existing Product

Sony Semiconductor Solutions Corporation has developed the CMOS image sensor “IMX385LQR” for industrial applications. This new image sensor showcase a high sensitivity that is approximately twice that of the existing product (IMX185LQJ)*1.
The IMX385LQR pursues picture quality at low illuminance usually needed by cameras for industrial applications and mounts pixels with a sensitivity of 2350 mV, which is the highest sensitivity among Sony image sensors for industrial applications*2. In addition, SNR1s of 0.13 lx*3, which is the highest performance among Sony Full HD-compatible image sensors for industrial applications, is achieved by mounting an internal programmable gain amplifier and using high conversion gain pixels. Superior performance as an image sensor for industrial applications is further achieved by combining HDR (High Dynamic Range) technology with technology that improves sensitivity in the near-infrared light region. These characteristics are also well-suited for astrophotography.



Astrophotography Performance

ASI385MC offers very good performance for astrophotography. Low read noise, high dynamic range, QE peak of at least 80%, AR protective window and much more.





USB 3.0 Port & ST4 Port

USB 3.0 Port: can provide 5Gb bandwidth to let ASI385 run at 67 fps (12bit, normal mode) or 120 fps (10bit, high speed mode)  at full resolution(2.13Mega).

ST4 Port: can be used connect with auto guide port of mount, for guiding.

385MC3

Mechanical Diagram

What is in the box?

ASI385MC box includes all necessary cables, adapters, and manuals.

224-290-178-185-385非冷冻包装清单
