سنسور دوربین 178MC ( تک رنگ)

 ASI178MC  از حسگر 6.4 مگا پیکسلی سونی   IMX178 بهره میبرد.نویز بسیار کمی داشته ، حساسیت زیاد  آن را برای عکاس نجومی و حتی میکروسکوپ بسیار مناسب می کند. از این دوربین برای عکاسی از ماه سیارات و خورشید استفاده میشود.

مشخصات دیگر دوربین :

Product Description

Camera Sensor

Back-illuminated  CMOS Image Sensor with 14bit ADC. ASI178MM has a 1/1.8″ and 6.4M pixels sensor IMX178 with SONY STARVIS and Exmor R Technology.

Astrophotography Performance

Extremely low read noise(1.4e-2.2 e) , 1.4e @27db, high sensitivity and 14bit ADC make it very suitable for astronomy and microscopy high resolution photograph.

absolute QE Curve

USB 3.0 Port & ST4 Port

USB 3.0 Port: can provide 5Gb bandwidth to let ASI178 run at 30 fps (14bit, normal mode) or 60 fps (10bit, high speed mode)  at full resolution(6.4Mega).

ST4 Port: can be used connect with auto guide port of mount, for guiding.

Mechanical Diagram

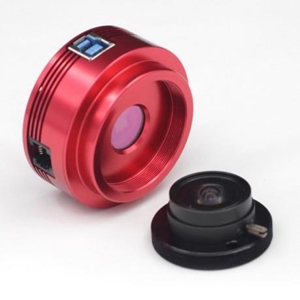

What is in the box?

Come with a 2.5mm all sky lens which can provide a nearly 170° view of the sky.

Drivers and Softwares:

Our website has newest camera drivers and many DSO and Planetary capture softwares. Please make sure the newest driver and software has been installed before you start shooting:

https://astronomy-imaging-camera.com/software/
